Dr. Martin Schiemann

Dr. Siegmar Wirtz

radiative heat transfer in moving granular assemblies

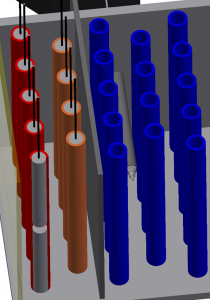

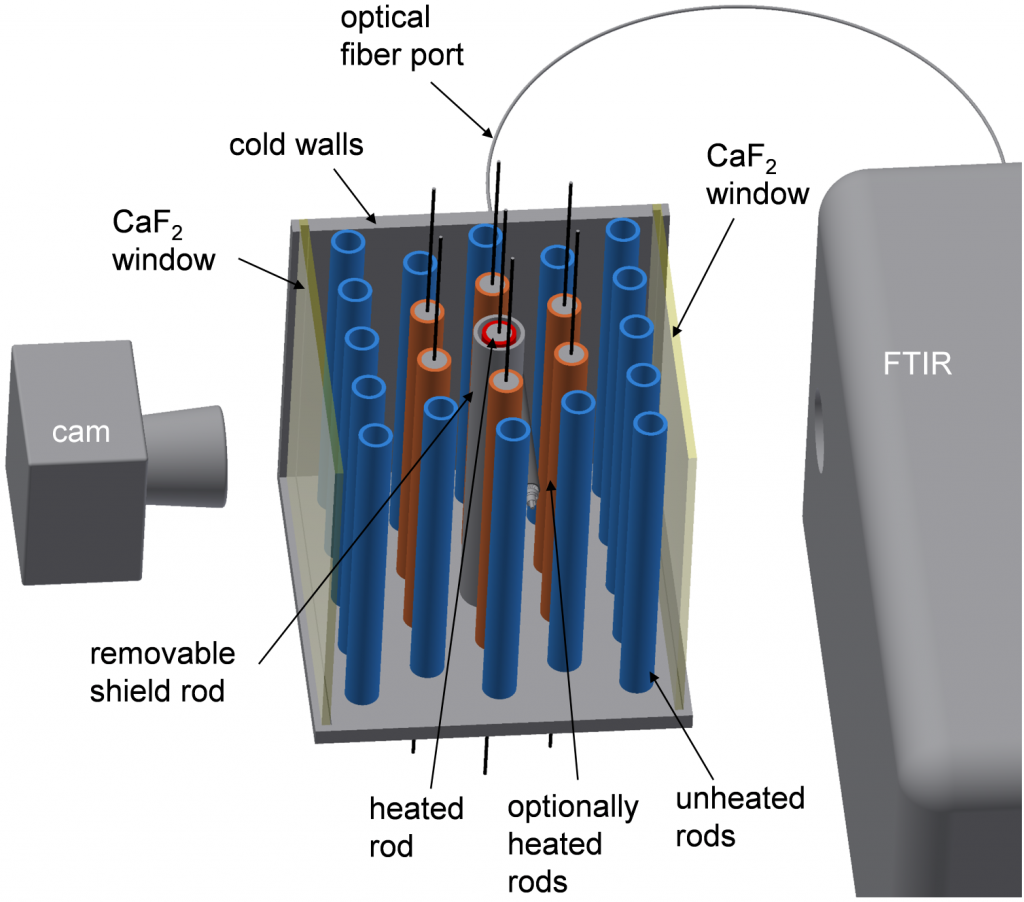

Fig. 1. Left: experimental setup including an infrared camera and the vacuum chamber on a traversable plate and the spatially fixed Fourier-transform infrared spectroscopy (FT-IR) setup. Right: Investigated rod arrangement inside the vacuum chamber.

The project B3 develops an efficient numerical description of the radiative heat transfer in moving granular assemblies, utilizing experimental and numerical methods. In actual systems, the nature of radiative transport lies in between limiting cases, long range directional exchange among solid surfaces enclosing a large participating gas volume and local short range exchange within a densely packed particle bulk. Here, the radiative interaction with the interstitial gas volumes is negligible and omnidirectional diffusion prevails, which can be expressed as an increase in effective thermal conductivity. For the systems of interest in BULK-REACTION, the diffusion limit is usually not approached because particles are too large and the direct short-range interchange of radiation of particles of arbitrary shape has to be accounted for explicitly. The directional long range transfer and this local direct exchange must coexist in one domain and interfaces with a gradually changing share of both regimes must be able to move across the domain over time. This will be achieved by merging the widely used Discrete Ordinates Method (DOM) approach with a short range model for the dense system. Spectral redistribution, induced by varying surface temperature of the objects involved, will be accounted for in the dense bed.

Ab initio provision will be made for moving particles of complex shape. However, the operational focus in funding period (FP) 1 will be on polydisperse spherical particles in simplified static geometric configurations or with prescribed movement while bearing in mind and taking preparatory steps for the future extension in FP2.

Since previous experimental verification of thermal radiation transport models essentially focussed on either one of the two regimes mentioned, new and original experiments will provide the lacking data on temperature evolution, radiative fluxes, and spectral distribution in generic packed bed configurations. A flexible setup, abstracting the spherical particles as cylinders and enabling a variable arrangement of these objects, will allow detailed experiments to reproduce situations occurring in a reacting bulk. Different static polydisperse and anisotropic situations (with spatial gradients of porosity) as well as a range of initial temperature differences and surface materials will be considered

Fig. 2. Infrared images of stainless steel (a) and magnesium oxide (b)
Comparison of the radiation intensities of stainless steel/magnesium oxide at the same
Fig. 3. Comparison of the radiation intensities of stainless steel/magnesium oxide at the same measuring point

The investigations of stainless steel and magnesium oxide samples demonstrate the influence of different surface properties on thermal radiation transport in a packed bed. The IR-images in Fig. 2 clearly show that a spectrally reflective material, such as stainless steel, causes significant reflections. The temperatures measured with the IR camera are therefore significantly higher than the actual material temperature, which is determined by a reference thermocouple. This is not observed with a more diffuse reflective material such as magnesium oxide. No reflection stripes occur, and the surface temperature is much more homogeneous. In addition, the temperature measured with the IR-camera corresponds much better with the reference temperature of the thermocouple.

The detection of the radiation intensities with the FT-IR also shows the influence of different surface properties (Fig. 3). The thermal radiation from the center heated rod is reflected much stronger in the stainless steel arrangement, whereby the radiation intensities at an identical measuring point are significantly higher for the stainless steel arrangement than for the magnesium oxide arrangement.



A detailed overview of the recent experimental and numerical studies is published in the following journal publications:
